Custom Connector Gaskets
Custom connector gaskets, per customer designs, are frequently manufactured by Stockwell Elastomerics. Low volume flat gaskets can be waterjet cut with no tooling cost. Higher volumes of flat gaskets are typically die cut, often with low cost steel rule dies. Stockwell Elastomerics also compression molds and injection molds specialty connector gaskets.
MIL-DTL-83528/4 Conductive Shielding Gasket, EMI/RFI – Flange Mount
Stockwell Elastomerics manufactures MIL-DTL-83528/4F conductive flange gaskets made from MIL-DTL-83528E Type B and MIL-DTL-83528E Type D materials. Stockwell Elastomerics also manufactures custom EMI gaskets from these QPL listed, silver-plated, aluminum-filled materials.
In addition, Stockwell Elastomerics offers commercial grade EMI materials that have been tested and meet the MIL-DTL-83528 shielding requirements at very competitive price points. These materials are widely used for applications that do not have the mil grade mandate.
MIL-DTL-83528E Type B Material Description
Silver-plated, aluminum-filled silicone, capable of 100 dB of plane wave shielding effectiveness at 10 GHz with a continuous use temperature range of -55°C to +160°C.
MIL-DTL-83528E Type D Material Description
Silver-plated, aluminum-filled fluorosilicone, capable of 90 dB of plane wave shielding effectiveness at 10 GHz with a continuous use temperature range of -55°C to +160°C. In MIL-DTL-83528E Type D material, fluorosilicone rubber is used where added chemical resistance is needed.
Table Key
Example PIN: M83528/004B001
- M83528 – indicates the EMI / RFI family of conductive materials
- 004 – indicates the flange style
- B – indicates the specific material type (B indicates Ag/Al filled silicone)
- 001 – indicates the size and exact dimensions of the conductive flange gasket
| PIN | A (± .010″) |
B (± .010″) |
C (± .015″) |
D (± .010″) |
Connector Shell Size |
| M83528/004B001 M83528/004D001 |
.469″ (11.91 mm) |
.375″ (9.53 mm) |
.738″ (18.75 mm) |
.141″ (3.58 mm) |
6 |
| M83528/004B002 M83528/004D002 |
.594″ (15.09 mm) |
.630″ (16.00 mm) |
.840″ (21.34 mm) |
.135″ (3.43 mm) |
8 |
| M83528/004B003 M83528/004D003 |
.594″ (15.09 mm) |
.568″ (14.43 mm) |
.812″ (20.62 mm) |
.125″ (3.18 mm) |
8 |
| M83528/004B004 M83528/004D004 |
.594″ (15.09 mm) |
.500″ (12.70 mm) |
.875″ (22.23 mm) |
.156″ (3.96 mm) |
8 |
| M83528/004B005 M83528/004D005 |
.719″ (18.26 mm) |
.750″ (19.05 mm) |
.965″ (24.61 mm) |
.135″ (3.43 mm) |
9,10 |
| M83528/004B006 M83528/004D006 |
.719″ (18.26 mm) |
.680″ (17.27 mm) |
.937″ (23.80 mm) |
.125″ (3.18 mm) |
10 |
| M83528/004B007 M83528/004D007 |
.719″ (18.26 mm) |
.625″ (15.88 mm) |
1.000″ (25.40 mm) |
.156″ (3.96 mm) |
10S,SL |
| M83528/004B008 M83528/004D008 |
.812″ (20.62 mm) |
.875″ (22.23 mm) |
1.060″ (26.92 mm) |
.141″ (3.58 mm) |
11,12 |
| M83528/004B009 M83528/004D009 |
.813″ (20.65 mm) |
.750″ (22.10 mm) |
1.094″ (27.79 mm) |
.141″ (3.58 mm) |
12,12S,SL |
| M83528/004B010 M83528/004D010 |
.906″ (23.01 mm) |
1.005″ (25.53 mm) |
1.153″ (29.29 mm) |
.135″ (3.43 mm) |
13,14 |
| M83528/004B011 M83528/004D011 |
.906″ (23.01 mm) |
.938″ (23.83 mm) |
1.125″ (28.58 mm) |
.125″ (3.18 mm) |
14 |
| M83528/004B012 M83528/004D012 |
.906″ (23.01 mm) |
.875″ (22.23 mm) |
1.188″ (30.18 mm) |
.156″ (3.96 mm) |
14,14S |
| M83528/004B013 M83528/004D013 |
.969″ (24.61 mm) |
1.135″ (28.83 mm) |
1.258″ (31.95 mm) |
.156″ (3.96 mm) |
15,16 |
| M83528/004B014 M83528/004D014 |
.969″ (24.61 mm) |
1.063″ (27.00 mm) |
1.250″ (31.75 mm) |
.125″ (3.18 mm) |
16 |
| M83528/004B015 M83528/004D015 |
.969″ (24.61 mm) |
1.000″ (25.40 mm) |
1.281″ (32.54 mm) |
.156″ (3.96 mm) |
16,16S |
| M83528/004B016 M83528/004D016 |
1.062″ (26.97 mm) |
1.260″ (32.00 mm) |
1.351″ (34.32 mm) |
.156″ (3.96 mm) |
17,18 |
| M83528/004B017 M83528/004D017 |
1.062″ (26.97 mm) |
1.189″ (30.20 mm) |
1.343″ (34.11 mm) |
.125″ (3.18 mm) |
18 |
| M83528/004B018 M83528/004D018 |
1.062″ (26.97 mm) |
1.135″ (28.83 mm) |
1.375″ (34.93 mm) |
.156″ (3.96 mm) |
18,18S |
| M83528/004B019 M83528/004D019 |
1.156″ (29.36 mm) |
1.375″ (34.93 mm) |
1.500″ (38.10 mm) |
.141″ (3.58 mm) |
19,20 |
| M83528/004B020 M83528/004D020 |
1.156″ (29.36 mm) |
1.312″ (33.32 mm) |
1.467″ (37.26 mm) |
.125″ (3.18 mm) |
20 |
| M83528/004B021 M83528/004D021 |
1.156″ (29.36 mm) |
1.250″ (31.75 mm) |
1.500″ (38.10 mm) |
.172″ (4.37 mm) |
20 |
| M83528/004B022 M83528/004D022 |
1.250″ (31.75 mm) |
1.500″ (38.10 mm) |
1.625″ (41.28 mm) |
.141″ (3.58 mm) |
21,22 |
| M83528/004B023 M83528/004D023 |
1.250″ (31.75 mm) |
1.437″ (36.50 mm) |
1.562″ (39.67 mm) |
.125″ (3.18 mm) |
22 |
| M83528/004B024 M83528/004D024 |
1.250″ (31.75 mm) |
1.375″ (34.93 mm) |
1.625″ (41.28 mm) |
.172″ (4.37 mm) |
22 |
| M83528/004B025 M83528/004D025 |
1.375″ (34.93 mm) |
1.625″ (41.28 mm) |
1.750″ (44.45 mm) |
.172″ (4.37 mm) |
23,24 |
| M83528/004B026 M83528/004D026 |
1.375″ (34.93 mm) |
1.563″ (39.70 mm) |
1.703″ (43.26 mm) |
.152″ (3.86 mm) |
24 |
| M83528/004B027 M83528/004D027 |
1.375″ (34.93 mm) |
1.500″ (38.10 mm) |
1.750″ (44.45 mm) |
.203″ (5.16 mm) |
24 |
| M83528/004B028 M83528/004D028 |
1.500″ (38.10 mm) |
1.750″ (44.45 mm) |
1.875″ (47.63 mm) |
.172″ (4.37 mm) |
25 |
| M83528/004B029 M83528/004D029 |
1.562″ (39.67 mm) |
1.750″ (44.45 mm) |
2.000″ (50.80 mm) |
.203″ (5.16 mm) |
28 |
| M83528/004B030 M83528/004D030 |
1.750″ (44.45 mm) |
2.000″ (50.80 mm) |
2.250″ (57.15 mm) |
.219″ (5.56 mm) |
32 |
| M83528/004B031 M83528/004D031 |
1.938″ (49.23 mm) |
2.250″ (57.15 mm) |
2.500″ (63.50 mm) |
.219″ (5.56 mm) |
36 |
| M83528/004B032 M83528/004D032 |
2.188″ (55.58 mm) |
2.500″ (63.50 mm) |
2.750″ (69.85 mm) |
.219″ (5.56 mm) |
40 |
| M83528/004B033 M83528/004D033 |
2.375″ (60.33 mm) |
2.781″ (70.63 mm) |
3.000″ (76.20 mm) |
.219″ (5.56 mm) |
44 |
| M83528/004B034 M83528/004D034 |
2.625″ (66.68 mm) |
3.031″ (76.99 mm) |
3.250″ (82.55 mm) |
.219″ (5.56 mm) |
48 |
Molded Connector Gasket
Stockwell Elastomerics custom molds connector gaskets using injection molding or compression molding. The process depends on the material required; EMI connector gaskets and fluorosilicone connector gaskets are compression molded and liquid silicone rubber connector gaskets are injection molded.
Soft Connector Gasket
Stockwell Elastomerics manufactures custom connector gaskets from a range of soft materials. I/O gaskets, D-sub gaskets, display connector gaskets and other connectors with thumb screws and limited compressive loads generally require soft materials to achieve proper gasket compression. Ultra soft silicone foam, soft PORON® and low durometer solid siliconematerials can be used.

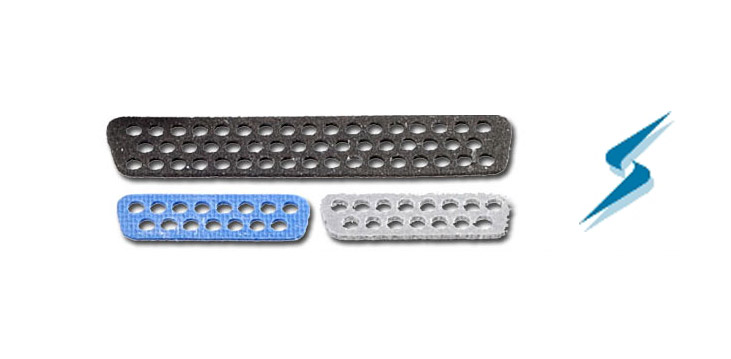

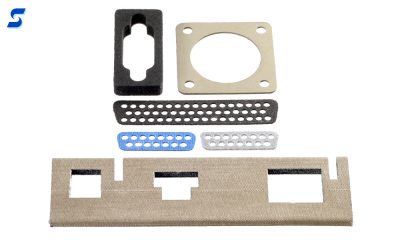

Custom D-Sub Gasket
D-sub connector gaskets are custom made to customer specifications. These can be made to seal the outer connector shell or with pin holes to fit internally in the connector. Soft, electrically insulating materials are most commonly specified. Materials for D-sub gaskets range widely depending on the application.

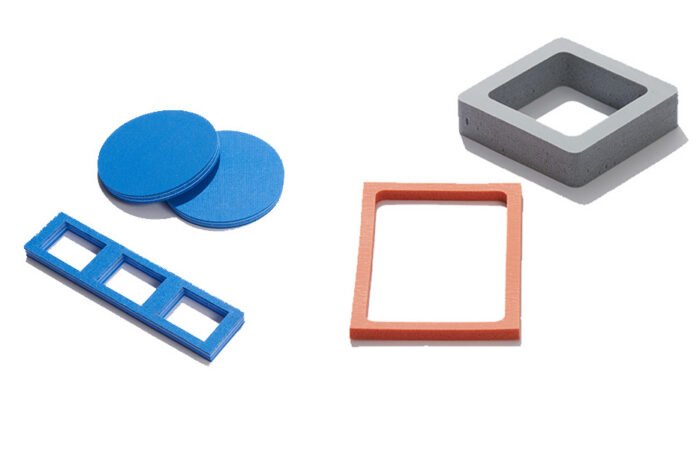

Fuel Resistant Connector Gasket
For applications requiring fuel resistance, Stockwell Elastomerics manufactures fluorosiliconeconnector gaskets. Fluorosilicone gaskets are molded or waterjet cut to customer specification. Solid fluorosilicone sheets and molded parts range from 40 – 70 durometer on the Shore A hardness scale. Expanded fluorosilicone sponge is also available in sheets.

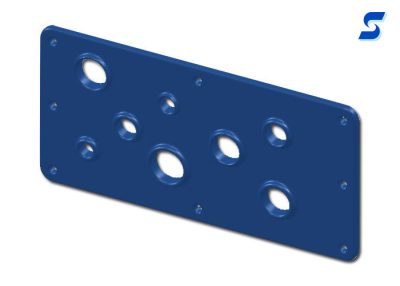

Gland Plate Gasket
An enclosure gland plate is the removable plate on an electrical enclosure where wiring or connectors enter. Gland plates are generally custom made for specific applications. Sealing the gland plate is equally important as sealing the doors on NEMA enclosures and UL enclosures.
PORON urethane foam is a good option for NEMA Type 3, IP54 and lower. More aggressive requirements such and NEMA Type 4, IP64 and up may require closed cell materials or solid material. Outdoor applications intended for long life should consider silicone sponge, silicone foam or solid silicone due to its resistance against UV and ozone (possibly generated in the enclosure).
Silicone Flange Gasket
Flange gaskets are usually made from heavy duty fiber or composite materials to address high pressures, steam or chemicals. Stockwell manufactures silicone flange gasket for unique applications where silicone properties are required. This may include low temperatures, low durometers or UV/ozone resistance. Quite often the “flange” call-out just describes the shape of the gasket; such as a square gasket with bolt holes in four corners and a larger hole in the center.
Foam Connector Gasket
Foam connector gaskets allow for sealing with low clamping forces. PORON foam connector gaskets work well for dust sealing and light splashing applications. Silicone foam has a wide temperature range allowing proper compression in freezing temperatures. PORON gaskets and silicone foam gaskets offer excellent compression set resistance. Compression set resistance represents the material’s ability to rebound after be being compressed or deflected. This is a key property for connector gaskets since they may be compressed and released on a regular basis.
Contact Stockwell Elastomerics for Connector Gaskets
Contact Us for further assistance with custom connector gaskets including custom D-sub, fuel resistant, foam, gland plate and silicone flange connector gaskets.
